KNC-SRV-SMC60S-0040-30ABK-3LKH
| Rated Torque (oz-in) | 175 |
|---|---|
| Rated Power (Watts) | 400 |
| Rated Speed (RPM) | 3000 |
| Max Speed (rpm) | 6000 |
| Rated Current (Arms) | 2.4 |
| Voltage | 220 VAC |
| Brake | Yes |
| Inertia (oz-in-sec2) | 0.00579 |
| Torque Constant KT (oz-in/A) | 0.563 |
| Resistance (ohms) | 5.8 |
| Inductance (mH) | 11.5 |
| Length (mm) | 176 |
| Weight (lbs) | 4.62 |
| Lead Time | Typ 35 Days |
Interested in large quantity discount?
Product Information

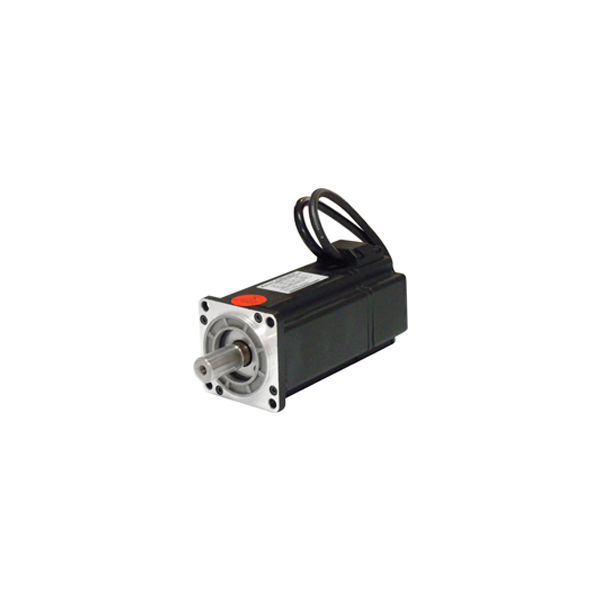

KNC-SRV-SMC60S-0040-30ABK-3LKH Servo Motors offer a low-cost solution for motion control applications requiring position and speed control. These motors are available in a 60mm square flange size and are equipped with a brake. A 2500 PPR Incremental Encoder allows for better cushioning ability and a higher cost-performance ratio. These Servo Motors have Insulation Class F, the best Insulation Class on the market. They operate quietly with high reliability and stability in high-temperature environments. The KNC-SRV-SMC60S-0040-30ABK-3LKH boasts peak torque values up to 539 oz-in, provides excellent dynamic response, allows for 3 times the overload capacity, and has a rated torque of 175 oz-in.
- 220VAC Servo Motor with Brake
- 400W Power Rating
- Rated Torque of 175 oz-in
- Rated Speed of 3000 RPM
- Maximum Speed of 6000 RPM
- Incremental Encoder
- IP65 Body, IP54 Shaft Seal
- CE Certified
